GENERAL PROCESS
DESCRIPTION
Scrubber systems are a diverse group of air pollution control equipment
that can be used to remove contaminants from industrial exhaust streams. LEE RUBBER CO. (PTE),. LTD , KUALA KANGSAR BRANCH (SMR Factory) adopts the Packed Tower Wet Scrubber as their air pollution
control devices. In wet scrubber system, scrubber can be designed to collect
particulate matter and/or gaseous pollutants. Typically wet scrubber remove
dust particles by capturing them in liquid droplets. While the gaseous
pollutants, wet scrubbers remove them by dissolving or absorbing them into the
liquid. The good scrubber design must provide maximum contact between liquid
and dirty gaseous.
INTRODUCTION OF WET
SCRUBBER
Wet scrubber is basically a variety of devices that use liquid to
removed pollutants.
In a wet scrubber, the dirty gas stream is brought into contact with
the scrubbing liquid by spraying it with the liquid, by forcing it through a
pool of liquid or by some other contact method.
The design of any air pollution control device depends on the industrial
process and the nature of the air pollutants involved. Exhaust gas
characteristics and dust properties, if particles are present, are of primary
importance. Scrubbers can be designed to collect particulates and/or gaseous
pollutants. Wet scrubber remove particles by capturing them in liquid droplets.
Wet scrubbers removed pollutants gases by dissolving or absorbing them into the
liquid. Any droplets that are in the flue gas then be separated from the clean
exhaust stream by means of another device referred to as a mist eliminator.
Also, the resultant scrubbing liquid must be treated prior to any ultimate
discharge or reused in the plant.
There are numerous configurations of scrubbers and scrubbing
systems- all designed to provide good contact between the liquid and dirty gas
stream.

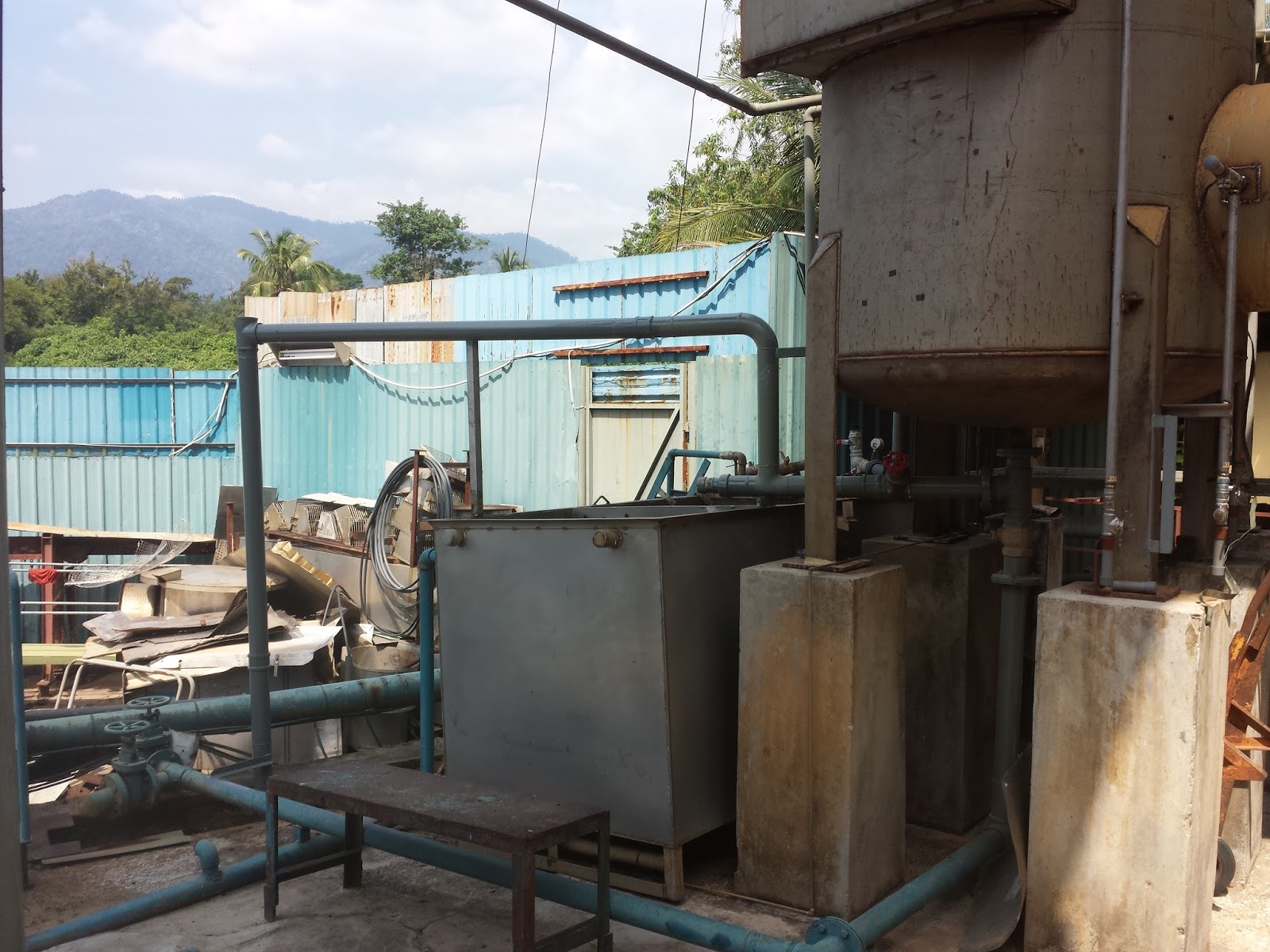

Figure 1.0 shows an example of wet scrubber adopts at LEE RUBBER CO. (PTE),. LTD , KUALA KANGSAR BRANCH (SMR Factory)
A basic packed tower unit is comprised of a column shell,
mist-eliminator, liquid distributors, packing materials, packing support and
may include a packing restrainer. Corrosion resistant alloys, steels or fiber are
required when highly corrosive solvents or gases are used. Ducts are required
to transport exhaust gas while gas while pumps, nozzles and pipes transport
liquid to and from the scrubbing vessel.
The shell is sometimes lined with a protective membrane, often made
from a corrosion resistant polymer. For absorption involving acid gases, an
interior layer of acid resistant brick provides additional chemical and
temperature resistance.
At the packed section, packing materials provide a large wetted surface for the gas stream maximizing the
area available for mass transfer. Packing life varies depending on the
application.
A liquid distributor is designed to wet the packing bed evenly and
initiate uniform contact between the liquid and vapor. The liquid distributor
must spread the liquid uniformly, resist plugging and fouling, provide free
space for gas flow and allow operating flexibility.
At high gas velocities, the gas exiting the top of the column may
carry off droplets of liquid as a mist. To prevent this, a mist eliminator in
the form of corrugated sheets or a layer of mesh can be installed at the top of
the column to collect the liquid droplets, which coalesce and fall back into the
column.
Figure 1: Schematic Scrubber.
MEASUREMENT BEFORE START-UP
1. Check List Before Start-Up
Equipment
|
Remarks
|
|
Utilities
|
Incoming power supply
|
Verify proper power to control panel/components
|
Incoming water supply
|
Verify proper water supply connection
|
|
Waste water discharge
|
Verify overflow & drain properly
|
|
Mist Eliminator
|
Installation
|
Inspect mist eliminator for proper installation
|
Packing
|
Installation
|
Verify packing height installation
|
Nozzles
|
Installation
|
Verify spray nozzle installation & tightened
|
Pumps
|
Pump rotation
|
Verify correct rotation of pump
|
Installation
|
Check for leaks, vibration &unusual noise
|
|
Lubrication
|
Verify pump grease prior to start-up
|
|
Discharge pressure gauge
|
Verify water pressure gauge properly installed &
operation
|
|
Electrical interlock
|
Verify proper wiring connection to motor
|
|
Piping
|
Installation
|
Verify piping & valve connection are tightened
|
Water flow meter
|
Verify wfm properly installed & operational
|
|
Fan
|
Installation and rotation
|
Check for vibration and verify correct rotation
|
Pulley, shaft & belt
|
Safe guard need to be provided
|
|
Inspection door
|
Closed
|
|
Other
|
Ducting, inlet & outlet
|
Check to ensure no obstruction
|
All inspection manholes
|
Close air tightly
|
|
Lubrication
|
Verify fan motor & bearing lubrication prior to
start –up
|
|
All other mechanical parts (eg ducting joints)
|
Ensure they are all securely fasten.
|
MEASUREMENT DURING START-UP
2. Check list during Start –up
No
|
Procedures
|
1
|
Open the water supply valve and check for leaks.
Ensure that the wastewater drains is connected.
|
2
|
Fill scrubber sump or remote tank with freshwater
until water begins to overflow
|
3
|
Start pump
|
4
|
Start fan
|
5
|
Immediately check stack discharge. If excessive
misting is observed shut system down immediately and consult factory.
|
6
|
Check to see that water flow is set to required
value. Water flows below this rate cause pollutant escape in the scrubber
exhaust line
|
7
|
Check the pressure gauge and the pressure drop
should be monitored across specific scrubber components.
|
8
|
The pH of the scrubbing liquid feeds streams and/or
recycle liquor systems should be monitored.
|
9.
|
The unit should operate quietly and vibration free.
The bearings and shaft should be warm to the touch.
|
10.
|
Walk one round to ensure the system is safe for
operation to avoid any injuries.
|
MEASUREMENT FOR SHUT DOWN
3. Check List For Shut Down
No.
|
Procedure
|
1
|
Switch off the fan and isolate the scrubbing system
from operation
|
2
|
Allow the recirculation liquid system to continue
for 20 min
|
3
|
Purge scrubber for 10 minutes
|
4
|
Turn off purge gas
|
5
|
Close valve between scrubber and central exhaust.
|
6
|
Turn off the scrubber power
|
7
|
Turn off water
|
8
|
Disconnect power before control box is opened.
|
CURRENT ‘PERFORMANCE MONITORING PROCEDURE
A procedure was made to ensure each typical form will be recorded
accordingly, such as pre-start up inspection, routine start-up and routine
shutdown.
From all data from performance monitoring record, we can determine
which areas need to do the maintenance work. For example, clogged at demister
or packing can be identified by pressure drop reading. All document related to
scrubber will be kept properly.
Refer Appendix I for TYPICAL FORM TO RECORD PERFORMANCE DATA / ACTIVITIES OF SCRUBBER
Troubleshooting is important
in operating a scrubbing system. So, the committees of
Malodour Treatment Plan also immediately carried out troubleshoot if any
abnormality detected. During shutdown, major maintenance was scheduled to
ensure cleaning at packing material, demister etc. can be made and physical
inspection of scrubber condition i.e. housing and ductwork can be carried out.
A current report will be presented by the committee once a year to
update the top management for
review and revision of performance monitoring requirements.
Sampling Point
WATER SCRUBBER A2

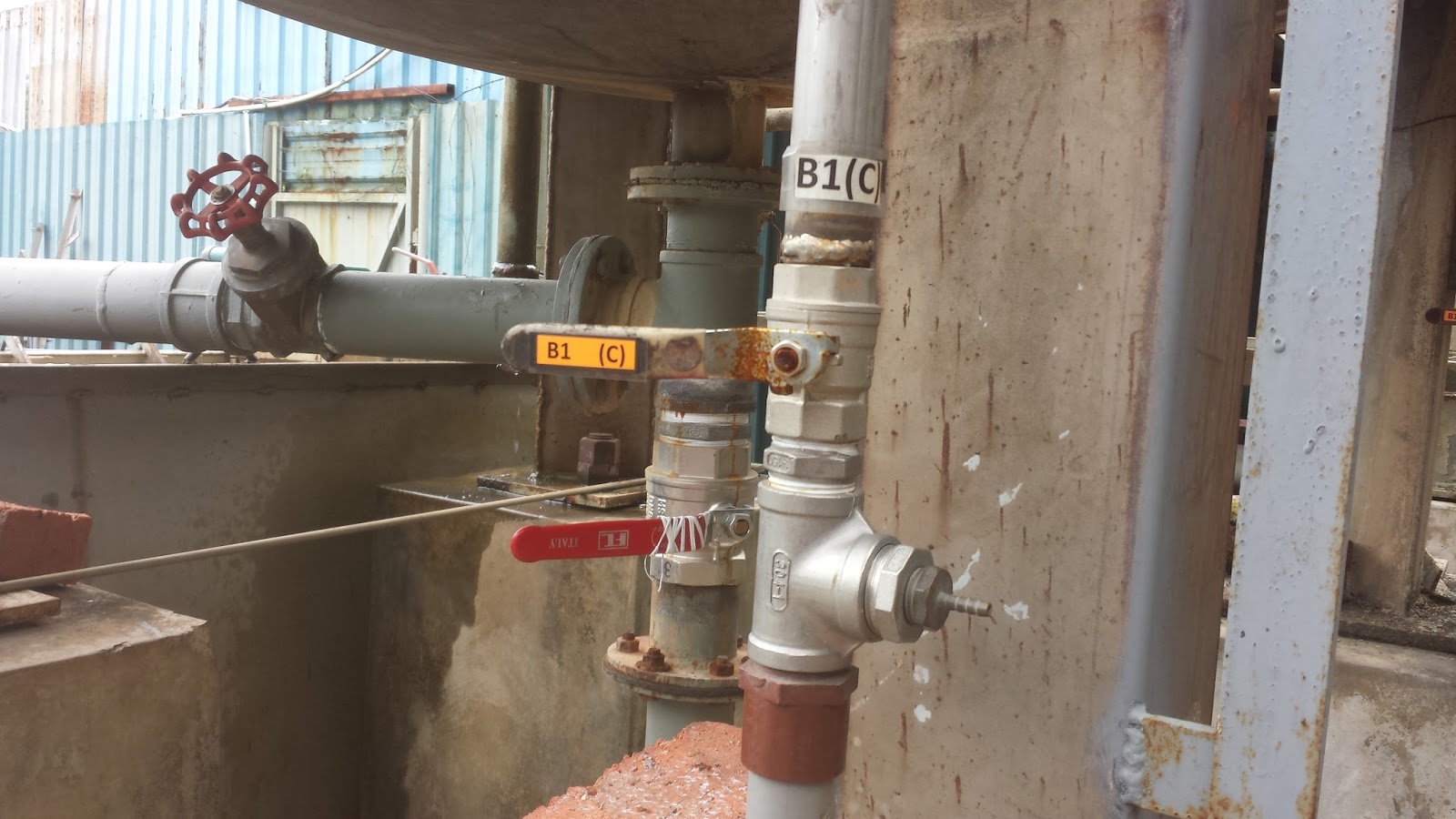

Sampling Point
WATER SCRUBBER B1
WATER SCRUBBER B2
